Imaging| Sensor | 1/2.0" CMOS Image Sensor |
|---|
| Zoom | Optical 36x, Digital 16x |
|---|
| Focal length | f = 6mm ~ 216mm |
|---|
| Angle of view | Horizontal – 60.0°(wide) ~ 2.0°(tele), Vertical : 33.9°(wide) ~ 0.94°(tele) |
|---|
| Maximum aperture ratio | F1.5(wide) ~ F4.8(tele) |
|---|
| Min object distance | 3m |
|---|
| Focus control | Oneshot AF |
|---|
| Lens type | DC auto iris |
|---|
| Min illumination | 0lux(IR ON), Color : 0.0045lux, B/W : 0.0003lux(IR OFF) |
|---|
| Electronic shutter speed | 1/1 ~ 1/100,000 sec |
|---|
| Day & Night | Day / Night / Auto |
|---|
| Back light compensation | BLC / HLC / WDR |
|---|
| White balance | Auto tracing white / Auto white / Manual |
|---|
| Gain Control | Auto |
|---|
| Noise reduction | Auto / Manual |
|---|
| Image stabilization | EIS(Gyro sensor) |
|---|
| Defog | Support |
|---|
| Image rotation | Horizontal(Mirror), Vertical(Flip) |
|---|
Camera functions| Motion detection | 8 regions on 23x15 cells |
|---|
| Privacy masking | 8 regions (polygons of 8 points) |
|---|
| Auto tracking | Human / Vehicle / Locked target |
|---|
| IR LED | 8 pieces, 300m |
|---|
| Window cleaning | Air wiper |
|---|
| Video analytics | Motion detection, Object detection, Object tracking, Face detection, Intrusion detection
Missing object detection, Abandoned object detection, Line counting, ANPR
Vehicle speed detection, Directional detection, Defocus detection, Object blurring |
|---|
| Burn-in-OSD | Camera title, Direction, User-defined, Multi-lingual (English, Korean, French, German, Spanish, Italian, Russian, Japanese
Swedish, Portuguese, Dutch, Hungarian, Finnish, Special Symbols) |
|---|
Video| Compression | H.264 / H.265 / MJPEG |
|---|
| Frame rate | Max 60fps @ 1920x1080 |
|---|
| Bitrate control | H.264/H.265: CBR / VBR / Hybrid MJPEG: VBR |
|---|
| Resolutions | 1920x1080 ~ 352x240 |
|---|
| Streaming | Quad Streaming : Primary : H.264 / H.265, Secondary x 3 : H.264 / H.265 / MJPEG |
|---|
| Output | Composite |
|---|
Audio| Compression | G.711 u-law |
|---|
| Sampling rate | G.711: 8KHz |
|---|
| Bitrate | G.711: 64Kbps |
|---|
| Streaming | Full-duplex |
|---|
| Input & Output | 1 x Line-In (mono), 1 x Line-Out (mono) |
|---|
Event and Alarm| Event sources | Video analytics, Audio detection, Client disconnection, Sensor input, Shock detection, User-defined event |
|---|
| Event actions | E-mail notification, OSD alert, FTP upload, PTZ preset, Alarm control, Recording, HTTP action |
|---|
PTZ Control| Pan range | 360° (endless) |
|---|
| Pan speed | Preset max speed: 400°/sec,Manual speed: 0.065°/sec ~250°/sec |
|---|
| Tilt range | 105°(-15°~ 90°) |
|---|
| Tilt speed | Preset max speed: 280°/sec,Manual speed:0.065°/sec ~ 175°/sec |
|---|
| PTZ functions | Preset (500), Pattern (4), Swing (8), Group (8), Auto parking, Auto tracking |
|---|
Network| Interface | Ethernet 10/100base-T (RJ-45) |
|---|
| Protocol | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP,
FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTMP |
|---|

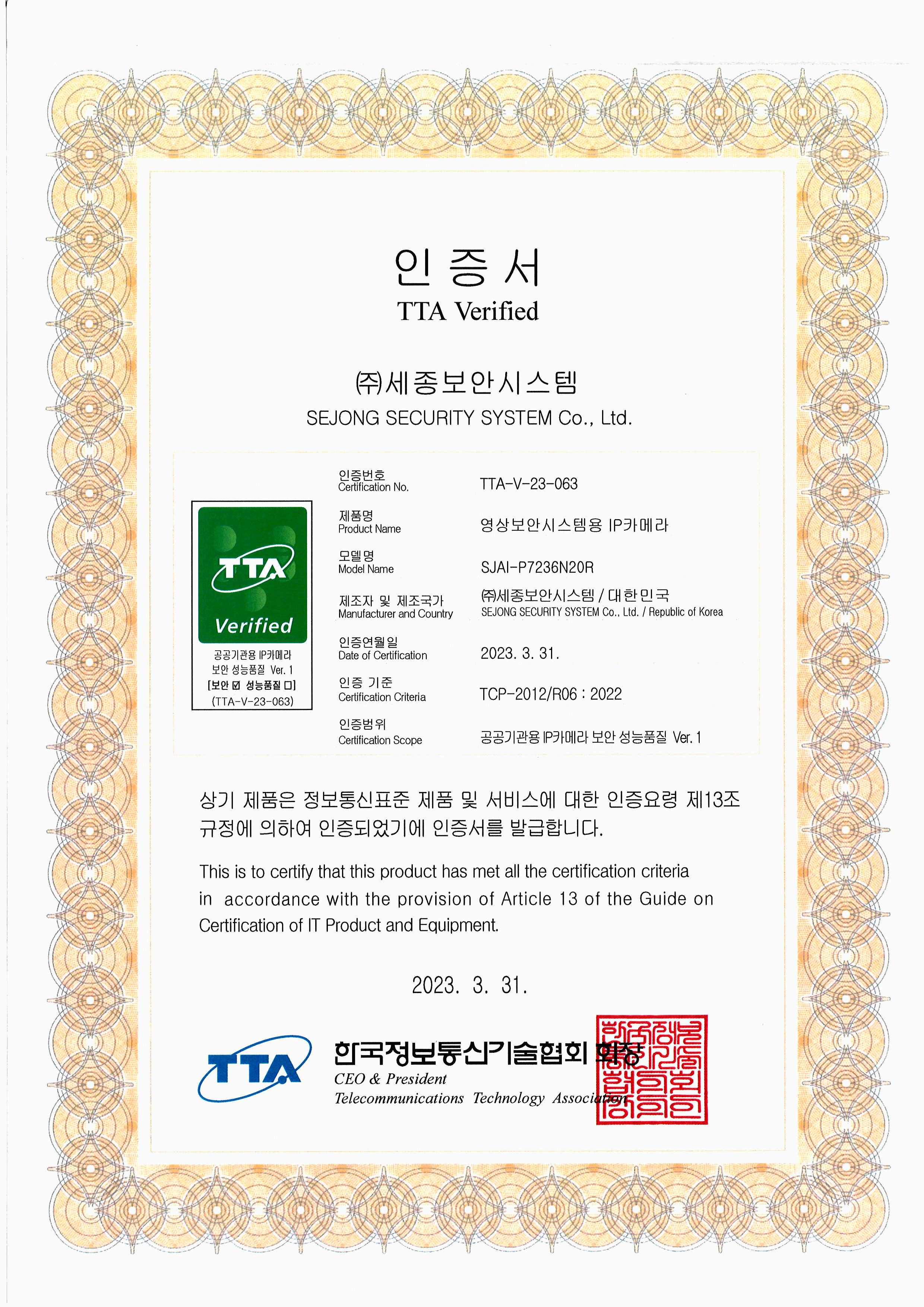

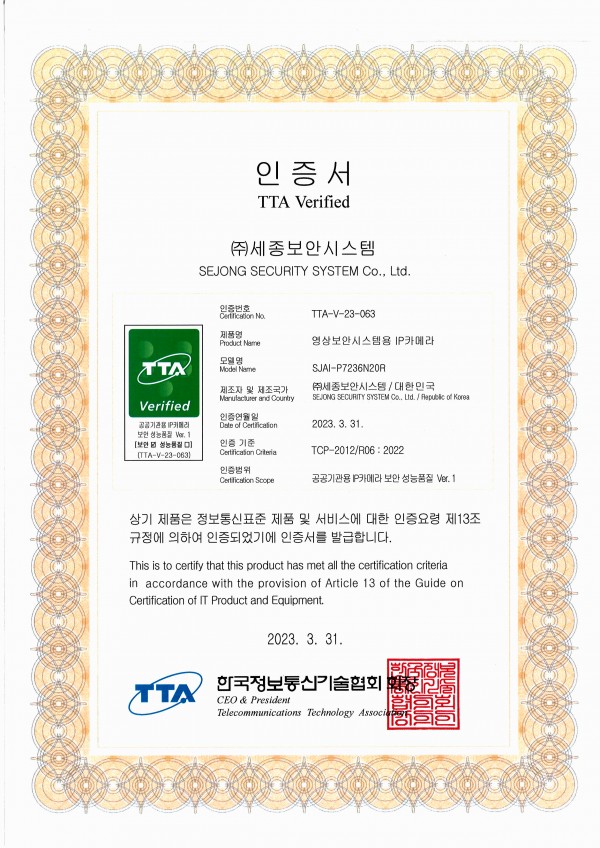

| Security | Basic/Digest authentication, HTTPS, IP address filtering, User access log, TTA certification |
|---|
| Application programming interface | Truen protocol/SDK, ONVIF, PSIA, MPEG-TS |
|---|
Power / Operating Conditions| Power supply | Min AC24V/3.0A |
|---|
| Power consumption | AC24V : 45W |
|---|
| Operating condition | -30°C ~ 70°C / Less than 90% RH |
|---|
| Storage condition | -50°C ~ 60°C / Less than 95% RH |
|---|
General| Certifications | IP66, IK10, KC |
|---|
| External devices | 4 x Sensor-In (dry contact, NO/NC)
2 x Alarm-Out (dry contact, NO)
1 x RS-485 port : Direct PTZ control etc. |
|---|
| Edge storage | Micro SD/SDHC/SDXC (Max 512GB) |
|---|
| Color/Material | Body: White / Aluminium
Head: Black / Aluminium
Side cover: Black / PC |
|---|
| RAL code | White: RAL9016
Black: RAL9005 |
|---|
| Dimension | Ø226 x 364mm |
|---|
| Weight | 5,320g |
|---|
|
