- SJIB-H2012AZIR
- 개요
- 사양
- 다운로드
Using Ultra-Low Light sensor
With 2M 1/1.9”CMOS image sensor, you can check High image quality and clear color images in dim light environment. It also has the ability to powerful low noise effect and outstanding noise reduction.
Powerful zoom capability
12x optical zoom, 12x digital zoom, excellent automatic focusing, and 7.0 ~ 84.0 mm focus range. Especially, since the aperture is F1.5~F1.9, it is possible to acquire better quality image than any other camera.
Triple codec, Simultaneous multi steaming
Triple H/W codec enables to transmit max 3 independent streams with different settings for different requirements. you can build a complete remote video monitoring system using H.264 / H.265.
Weather Proof Design
With IP66 protection, the camera ensures normal operation regardless of rain, snow or storm.
| CAMERA | ||
| Image Device | 1/1.9“ Progressive Scan CMOS (IMX385) | |
| Effective Pixels | Approx. 2.38 Mega pixels | |
| Aspect Ratio | HD : 16:9 SD : 4:3 | |
| Zoom Ratio | Optical x12, Digital x12 | |
| Focal Length | f = 7.0 ~ 84.0mm, F1.5 ~ F1.9 | |
| Horizontal angle | 51.1°(W) ~ 5°(T) | |
| MIN. Illumination | COLOR : 0.0005 Lux@F1.5 B/W : 0.0005 Lux@F1.5, 0 Lux (IR) | |
| Day & Night | Auto(CDS/CAM) / Day / Night(ICR) | |
| Focus | Auto/Manual | |
| DNR(2D/3D) | OFF/Level Adjustment(1~5) | |
| Shutter Speed | 1 sec ~ 1/10,000sec(60/30 mode) 1 sec ~ 1/10,000sec(50/25 mode) | |
| AGC | Auto/Manual | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| WDR/BLC | OFF/BLC/WDR(120dB) | |
| Other Function | Defog(Digital), HLC, Dynamic slow shutter | |
| GENERAL | ||
| Sensor In /Out | Built-in 1 Input / 1 Output(Relay) | |
| Audio In / Out | 1 Audio In / 1 Audio Out | |
| Video Out | BNC : VBS 1.0 Vp-p | |
| IR distance | More than 75M Wave : 850nm | |
| Power | AC24V | |
| Approvals* | IK10, KC, IP66 | |
| Housing | Weather proof / Vandal Proof Structure | |
| Material | Body : Aluminum Die-casting | |

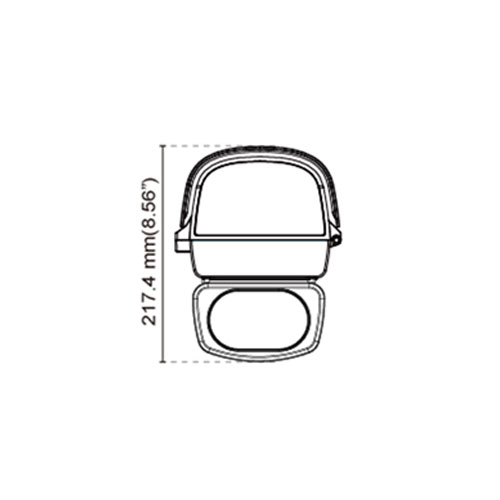

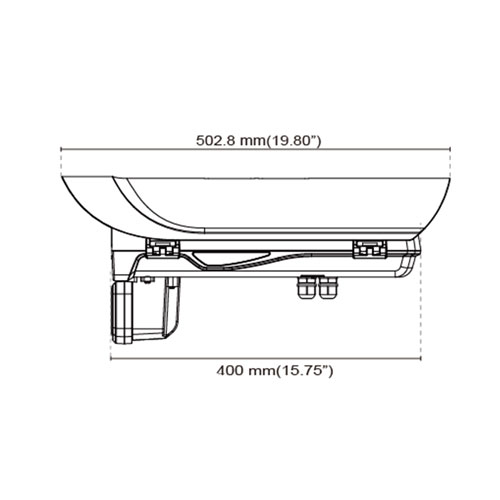

| Dimension | Net : 502.8 x 217.4 mm | |
| Weight | Net : 3.9Kg, Package: 4.5Kg | |
| Operating Temp. | -40°C ~ 50°C | |
| NETWORK | ||
| Ethernet | 10Base-T/100Base-Tx | |
| Video Compression | H.265/H.264/MJPEG | |
| Video Streaming | Main 1080p/720p Second D1/CIF/QCIF Third 1080p/720p/D1/CIF/QCIF | |
| Stream Type | Video/Complex(Video/Audio) Stream | |
| Frame Rate | Max. 30 /25 fps for 1080P/720P/D1/CIF/QCIF | |
| Bitrate | 30Kbps ~ 16Mbps. Supports CBR/VBR/FIX QP | |
| Audio Compression | Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz | |
| Local Storage | Micro SD/SDHC/SDXC card. Support up to 128GB | |
| IVA | Motion Detection, Occlusion Detection, Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc | |
| Alarm actions | Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client | |
| Alarm | Pre-Post Alarm | |
| Max No. of Clients | 10 users(Depending on user bandwidth) | |
| Web Brower | IE 6.0 above | |
| Protocols Support | IPv4 | IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP* |
| DDNS | Pubblic DDNS services Suport : www.dyndns.com | |
| ONVIF | Onvif 2.4,Profile S, CGI | |
| Security | User Authentication(ID/PW), IP Address/Mac Address filtering* | |
